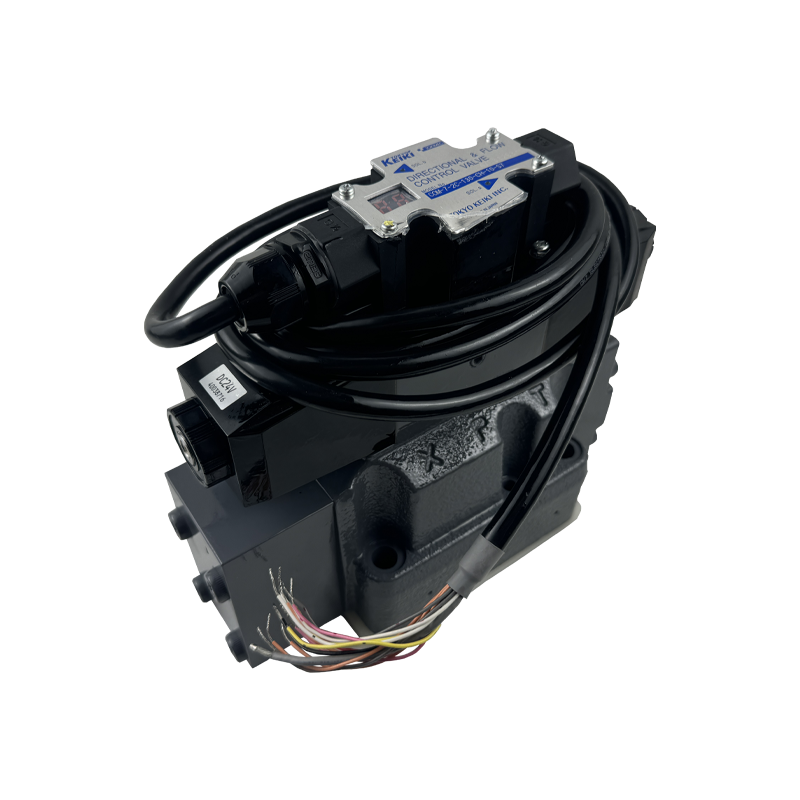

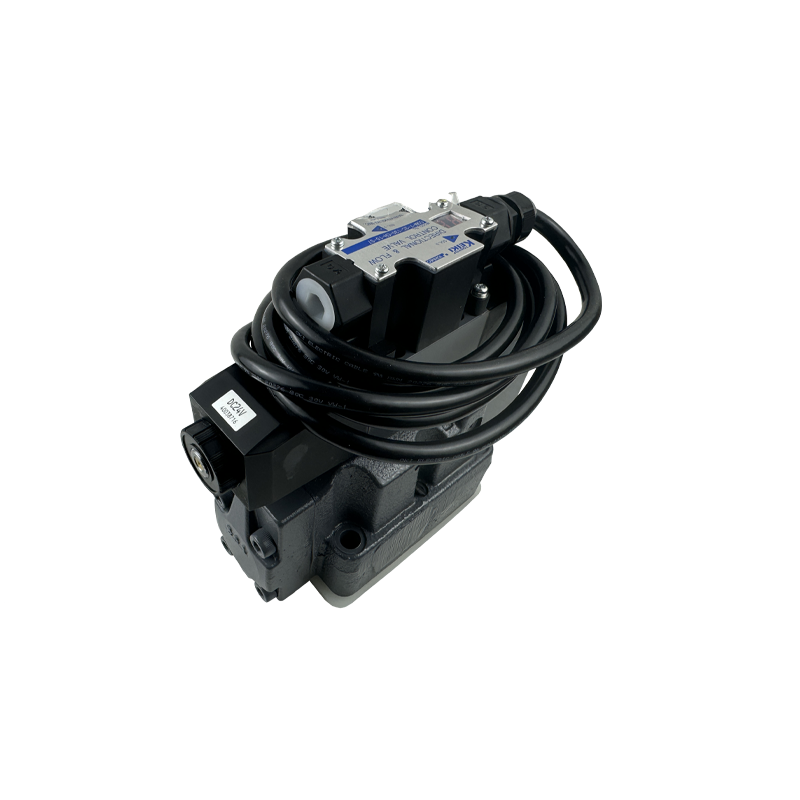

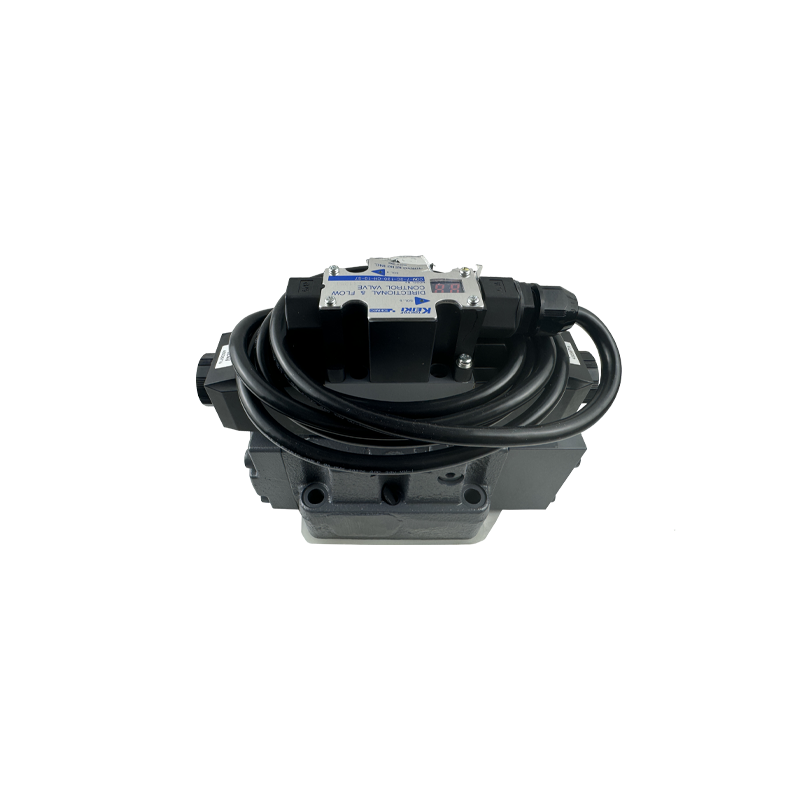

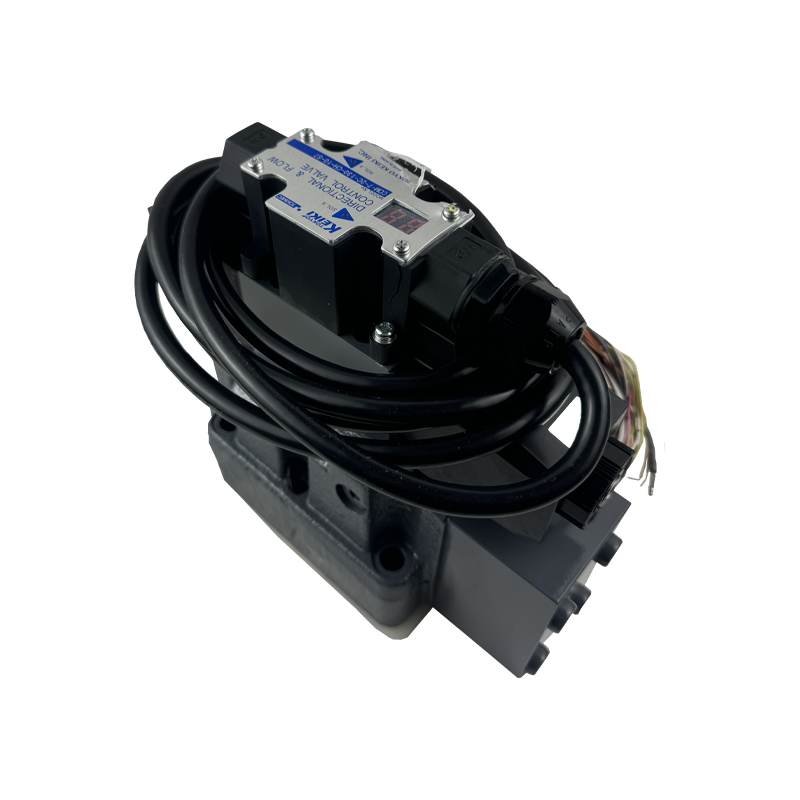

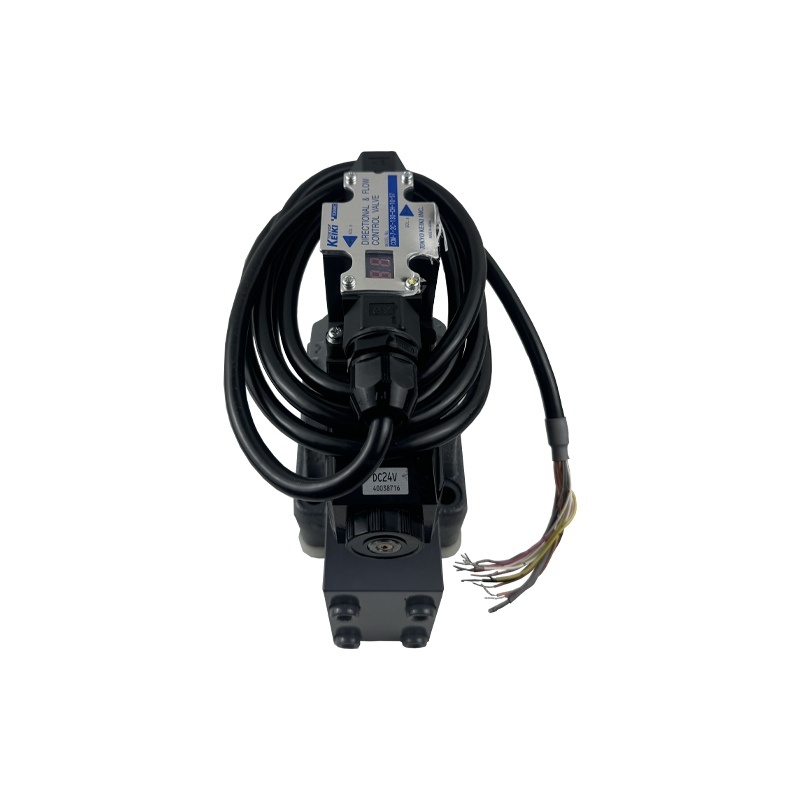

TOKYO KEIKI COM-7-2C-130-CH-10-S7 Hydraulic Directional Control Valves Hydraulic Fow Control Valves
$2,500.00
In Stock
Sold out
Categories:
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
Wholesale TOKYO KEIKI Hydraulic Valve COM-7-2C-130-CH-10-S7 Hydraulic Directional Control Valves Hydraulic Fow Control Valves
Specification
| Model Code | COM-3 | COM-5 | C0M-52 | COM-7 | C0M-8 |
| Rated Pressure MPa | 24.5 | 20.6 | 24.5 | ||
| AllowableTankPort Back Pressure MPa | 13.7 | ntemal drain:13.7 | |||
| External drain:24.5 | |||||
| Max.control flow L/min | 30* | 70* | 80*2 | 130* | 250*2 |
| Min.control flow L/min | 0.5* | 1.5* | 2*² | 3*2 | 5* |
| Pilotpressure MPa | —— | —— | More than 2 MPa | ||
| Hysteresis | 0mittec:less than 7%,F11:less than14% | ||||
| Repeatability | Less than 1%of max.flow | ||||
| Fow setting | Solenoid a,b 100divisions each | ||||
| Min.working time ms | 50* | 100* | 70*3 | ||
| Acceleration-deceleration timesetting |
0 to 9.9s (0.1s unity 0 to 9.99s (0.01s unit)switchable |
||||
| Ambienttemperature C | 0~60 | ||||
| Fuidtemperature C | 7～60 | ||||
| Fuidviscosity mm²/s | 20～300 | ||||
| Vibration resistance | 45 m/s²(JIS D1601) | ||||
| Shock resistance | 300 m/s²(JIS C0041) | ||||
| Waterproof,dustproof |
IP54 (control SH,CH,AN P65 (wiring U,KU |
||||
| Supply voltage*4 | DC21.6～28V | ||||
| Max.power consumption* | 40W(DC24 V,1.67 A) | ||||
| Input-outputsignals*4 | See table below | ||||
| Weight kg | 2.5 | 6.5 | 9 | 12 | 20 |
