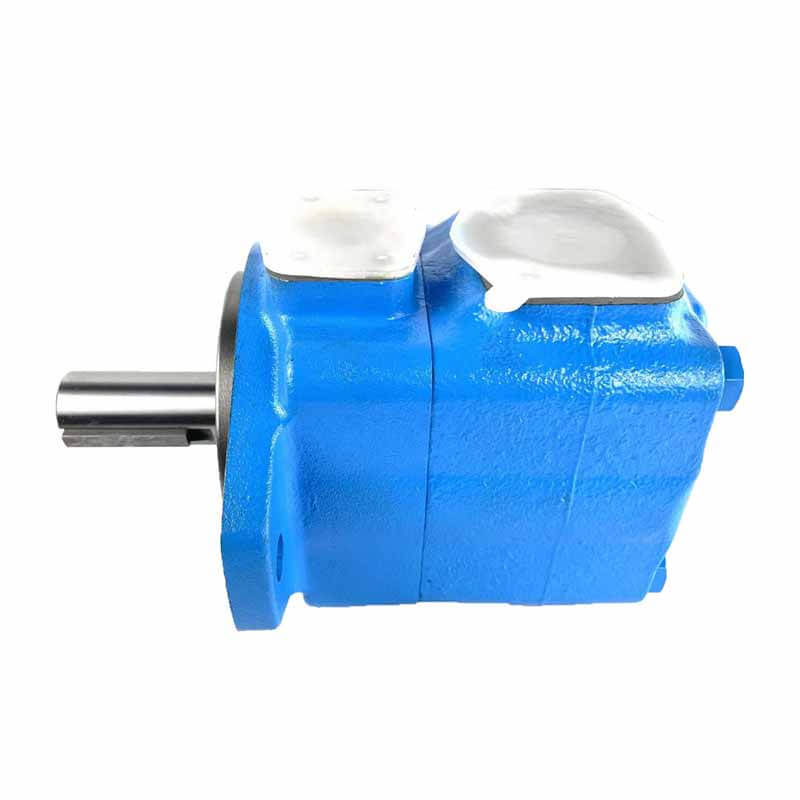

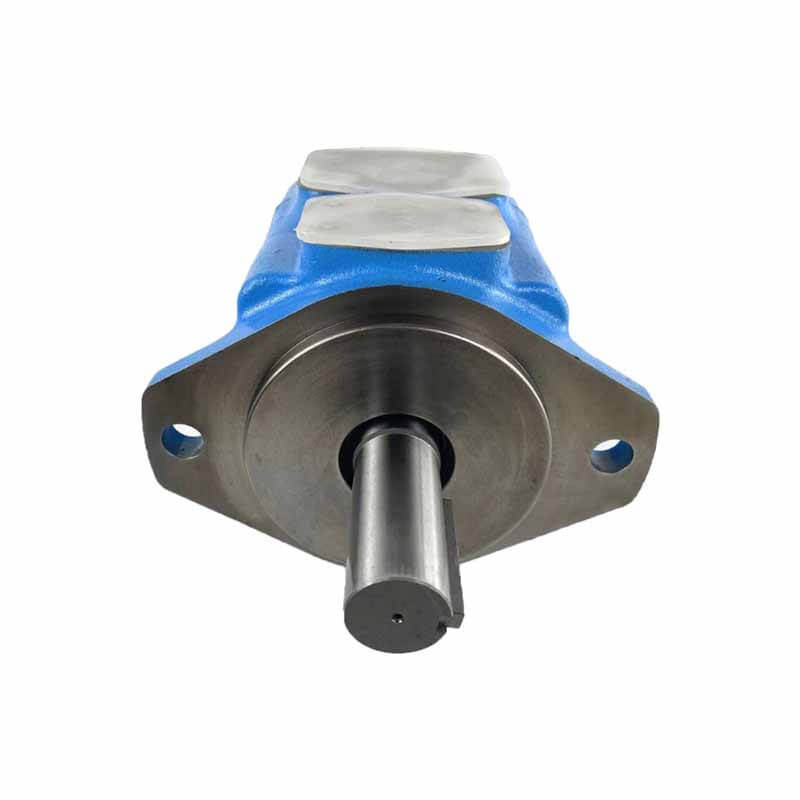

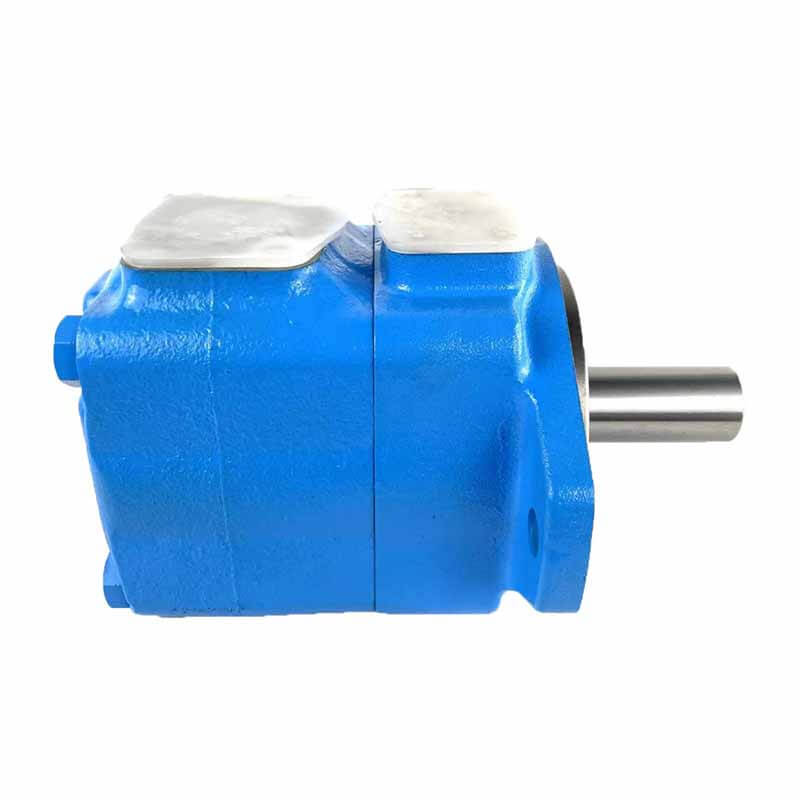

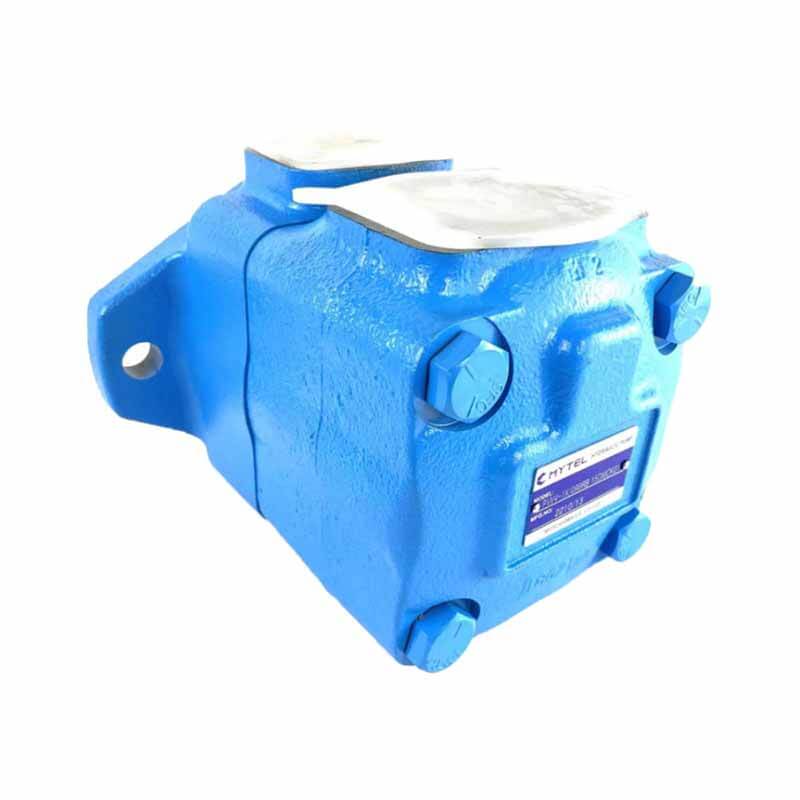

Rexroth PVV1-1X/018RA15DMB Hydraulic Single Vane Pump
Specifications
| Build sizes 1 and 2 (pump cartridge) | BS1 | BS2 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal size (≈ V in cm3) | NS | 18 | 27 | 36 | 40 | 46 | 40 | 45 | 55 | 60 | 68 | |
|
Max. flow qv at n = 1500 min-1, p = 0,7 bar and v = 25 mm2/s |
l/min | 26 | 39 | 53 | 59 | 70 | 59 | 66 | 80 | 89 | 100 | |
|
Operating pressure, absolute Inlet |
Pmin-max | bar | 0.83 to 2.4 (recommended: 1 ...1.35) | When using fluids containing water and phosphate ester min. 0,9 bar | ||||||||
| Outlet continuous for PVV | P max | bar | 210 | 210 | 210 | 160 | 140 | 175 | 175 | 175 | 175 | 175 |
| Outlet continuous for PVQ | P max | bar | 210 | 210 | 210 | 160 | 140 | 210 | 210 | 210 | 210 | 210 |
| Peak | pmax | A max. of 10% continuous output pressure; not longer than 0.5 seconds | ||||||||||
| RPM | nmin | min-1 | 600 | 600 | ||||||||
| *) At 1 bar | nmax bei PVV | min-1*) | 1800 | 1800 | ||||||||
| Inlet pressure | nmax bei PVQ | min-1*) | 2700 | 2700 | 2500 | |||||||
|
Min. drive power required at Ap « 0 bar, n « 1 .450 min-1 |
kW | 1 .1 | 1.5 | 2,2 | 3 | 4 | ||||||
|
Pressure fluid For use with the above stated operating data |
HLP mineral oil to DIN 51524 part 2 | |||||||||||
| Only with FKM seals („V“) | Perm. pmax | bar | 210 | 210 | 210 | 160 | 140 | 175 | 175 | 175 | 175 | 175 |
| Phosphate ester (HFD-R) | Perm. nmax | min-1 | 1200 | |||||||||
| Build sizes 4 and 5 (pump cartridge) | BS4 | BS5 | ||||||||||
| Nominal sizes (« V in cm3) | NS | 69 | 82 | 98 | 113 | 122 | 139 | 154 | 162 | 183 | 193 | |
|
Max. flow at n = 1500 min-1, p = 0,7 bar and v = |
qv 25 mm2/s |
l/min | 101 | 120 | 141 | 167 | 177 | 203 | 223 | 234 | 267 | 285 |
| Operating pressure, absolute | When using fluids containing water and phosphate ester min. 0,9 bar | |||||||||||
| Inlet | pmin-max | bar | 0.83 to 2.4 (recommended: 1...1,35) | |||||||||
| Outlet continuous for PVV | pmax | bar | 175 | 175 | 175 | 175 | 175 | 175 | 175 | 175 | 175 | 175 |
| Outlet continuous for PVQ | pmax | bar | 210 | 210 | 210 | 210 | 210 | 175 | 175 | 175 | 175 | 175 |
| Peak | pmax | A max. of 10% continuous output pressure; not longer than 0.5 seconds | ||||||||||
| RPM | nmin | min-1 | 600 | 600 | ||||||||
| *) At 1 bar | nmax bei PVV | min-1*) | 1800 | 1800 | ||||||||
| Inlet pressure | nmax bei PVV | min-1*) | 2500 | 2400 | 2200 | |||||||
|
Min. drive power required At Ap « 0 bar, n « 1.450 min-1 |
kW | 4 | 5.5 | 7.5 | 11 | |||||||
| Hydraulic | ||
|---|---|---|
| Build sizes 4 and 5 (pump cartridge) | BS4 | BS5 |
|
Pressure fluid For use with the operating data shown on page 7 |
HLP mineral oil DIN 51524 part 2 | |
| Only with FKM seals („V“) Perm. Pmax bar | 175 175 175 175 175 | 175 175 175 175 175 |
| Phosphate ester (HFD-R) Perm. Pmax min-1 | 1200 | |
| Pressure fluid temperature range °C | -10 to +70. (recommended: +30 to +60) Take into account the permissible viscosity range | |
| Viscosity range mm1 2 */s | 13 to 860 (recommended: 13 to 54) | |
| Max. permissible degree of pressure fluid contamination Cleanliness class to ISO 4406 (E) /(c) | Class 20/18/15 1) | |
| Alternative pressure fluids | HFB | HFC |
| Max. permissible operating pressure bar | 70 | 140 |
|
Only in conjunction with a return filter with a retention rate of P10 > 100 or more. The permissible pressure fluid temperature range is +15 °C to +50 °C. Maximum permissible RPM: 1200 min-1 |
||
