1-4 DAYS DELIVERY
Categories: Rexroth Hydraulic Pumps
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE

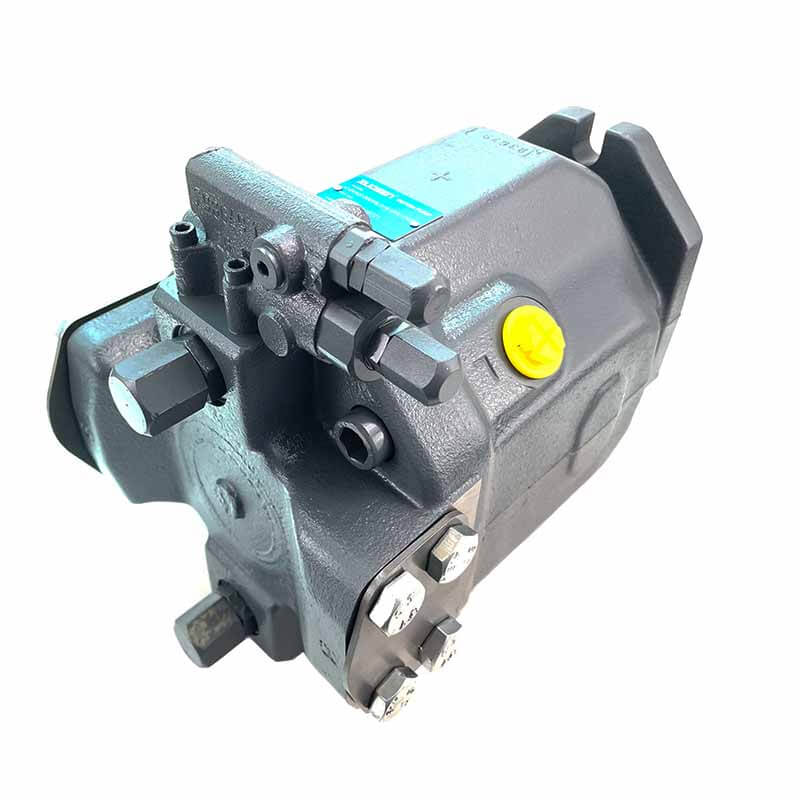

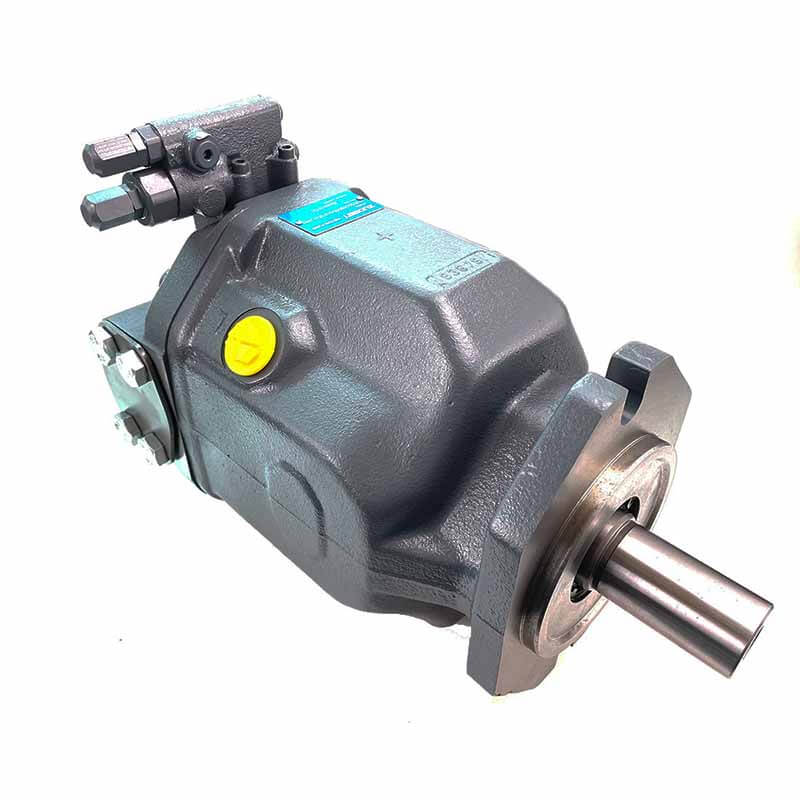

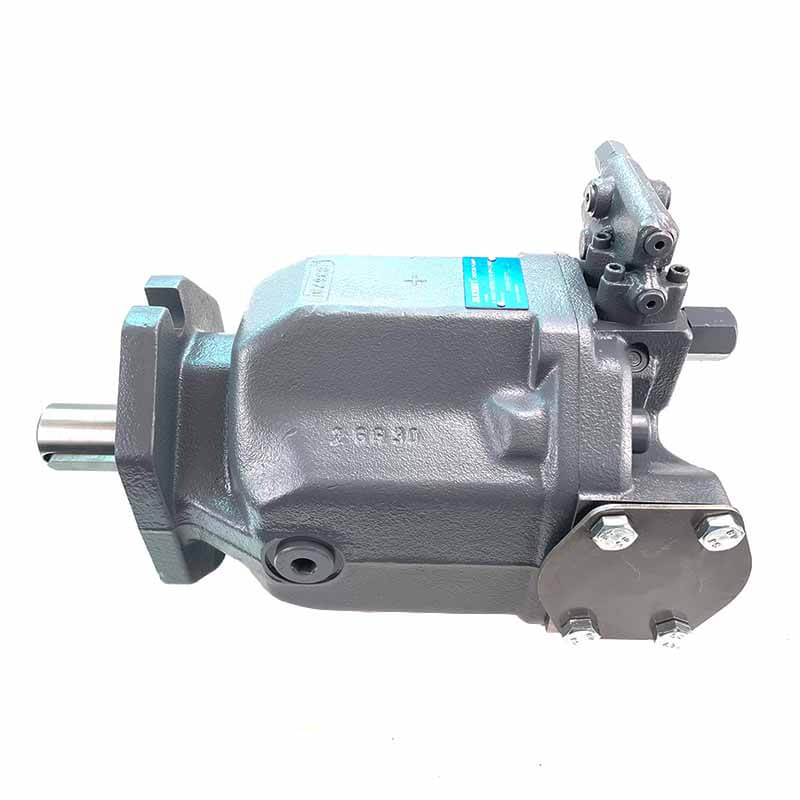

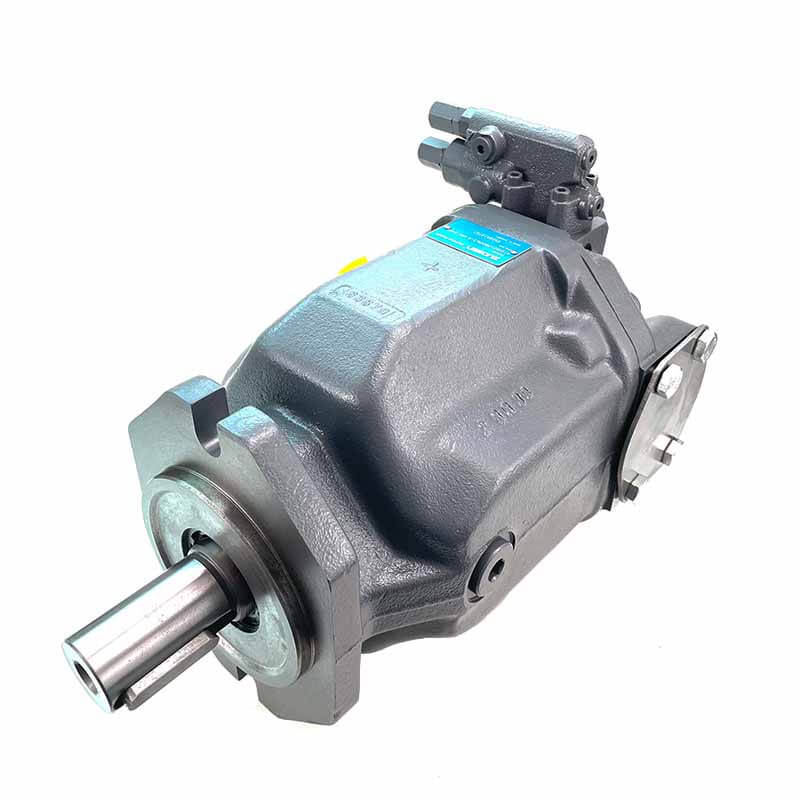

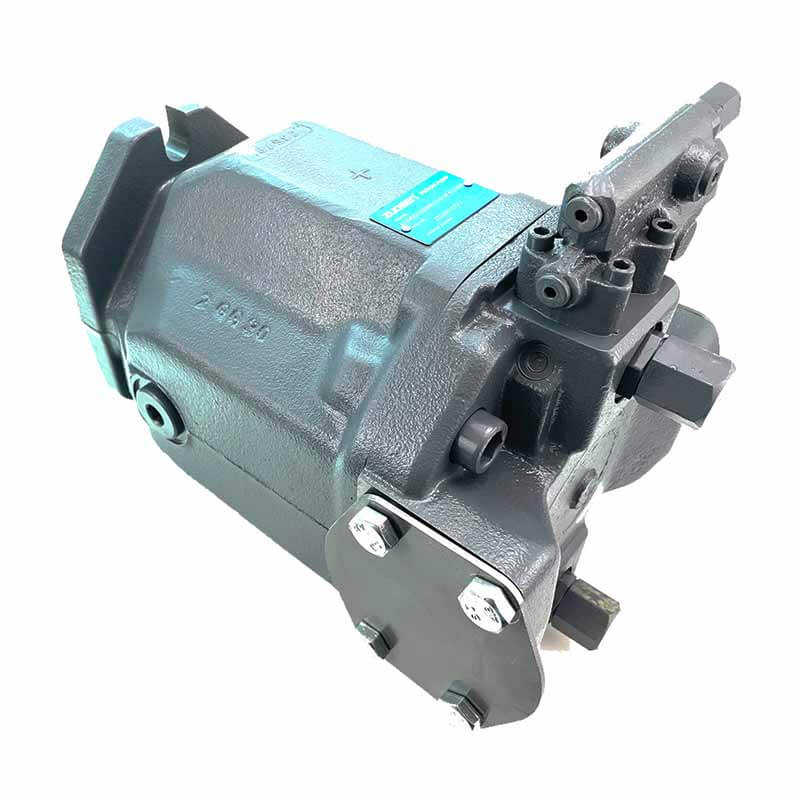

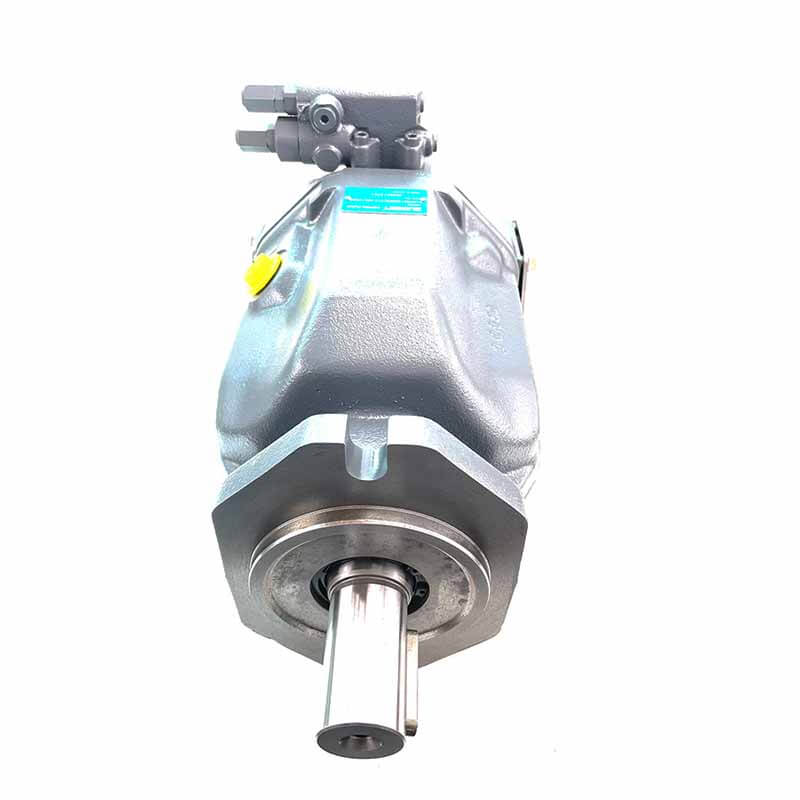

Rexroth A10VSO100DFR/31R-VPA12N00P Hydraulic Piston Pump
specification
| Size | NG | 18 | 28 | 45 | 71 | 100 | 140 | |||
|---|---|---|---|---|---|---|---|---|---|---|
|
Geometrical displacement per revolution Vg max cm3 |
18 |
28 |
45 |
71 |
100 |
140 |
||||
| Speed1) | ||||||||||
| maximum at Vg max | n nom rpm | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 | |||
| maximum at Vg < Vg max | n max perm rpm | 3900 | 3600 | 3100 | 2600 | 2400 | 2100 | |||
|
Flow at n nom and Vg max |
qv max l/min |
59 |
84 |
117 |
156 |
200 |
252 |
|||
| at nE = 1500 rpm and Vg max | qvE max l/min | 27 | 42 | 68 | 107 | 150 | 210 | |||
|
Power at p = 280 bar at nnom, Vg max |
Pmax kW |
30 |
39 |
55 |
73 |
93 |
118 |
|||
| at nE = 1500 rpm and Vg max | PE max kW | 12.6 | 20 | 32 | 50 | 70 | 98 | |||
|
Torque at Vg max and |
p = 280 bar |
Tmax Nm |
80 |
125 |
200 |
316 |
445 |
623 |
||
| p = 100 bar | T Nm | 30 | 45 | 72 | 113 | 159 | 223 | |||
| Rotary stiffness, drive shaft | S | c Nm/rad | 11087 | 22317 | 37500 | 71884 | 121142 | 169537 | ||
| R | c Nm/rad | 14850 | 26360 | 41025 | 76545 | – | – | |||
| P | c Nm/rad | 13158 | 25656 | 41232 | 80627 | 132335 | 188406 | |||
| Moment of inertial rotary group | JTW kgm2 | 0.00093 | 0.0017 | 0.0033 | 0.0083 | 0.0167 | 0.0242 | |||
| Angular acceleration, maximum2) | rad/s2 | 6800 | 5500 | 4000 | 3300 | 2700 | 2700 | |||
| Filling capacity | V L | 0.4 | 0.7 | 1.0 | 1.6 | 2.2 | 3.0 | |||
| Weight (without through drive) approx. m kg | 12 | 15 | 21 | 33 | 45 | 60 | ||||
