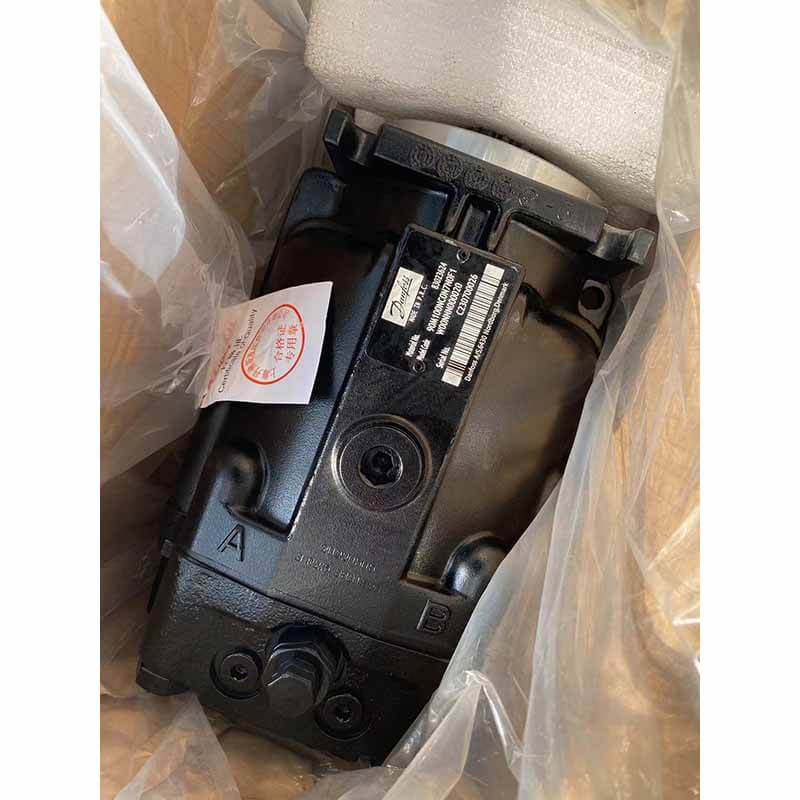

Sauer Danfoss 90M100NC0N7N0F1 Axial Piston Motors Hydraulic Variable Motor
Specifications
| Parameter | 042 MF | 055 MF | 055 MV | 075 MF | 100 MF | 130 MF | |
|---|---|---|---|---|---|---|---|
| Swashplate | Fixed | Fixed | Variable | Fixed | Fixed | Fixed | |
| Max. displacement cm³/rev [in³/rev] | 42 [2.56] | 55 [3.35] | 55 [3.35] | 75 [4.57] | 100 [6.10] | 130 [7.90] | |
| Maximum corner power kW [hp] | 155 [208] | 187 [251] | 187 [251] | 237 [318] | 292 [392] | 354 [475] | |
| Theoretical torque N•m/bar [lbf•in/1000 psi] | 0.67 [410] | 0.88 [530] | 0.88 [530] | 1.19 [730] | 1.59 [970] | 2.07 [1260] | |
| Speed limits min-1(rpm) |
Continuous (max. disp.) | 4200 | 3900 | 3900 | 3600 | 3300 | 3100 |
| Maximum (max. disp.) | 4600 | 4250 | 4250 | 3950 | 3650 | 3400 | |
| Continuous (min. disp.) | — | — | 4600 | — | — | — | |
| Maximum (min. disp.) | — | — | 5100 | — | — | — | |
| System pressure bar [psi] |
Continuous | 420 [6000] | |||||
| Maximum | 480 [7000] | ||||||
| Weight kg [lb] | SAE | 15 [34] | 22 [49] | 39 [86] | 26 [57] | 34 [74] | 45 [99] |
| Cartridge | 21 [46] | 26 [57] | 40 [88] | 33 [72] | — | — | |
| Mass moment of inertia kg•m² [slug•ft²] | 0.0023 [0.0017] | 0.0060 [0.0044] | 0.0060 [0.0044] | 0.0096 [0.0071] | 0.0150 [0.0111] | 0.0230 [0.0170] | |
