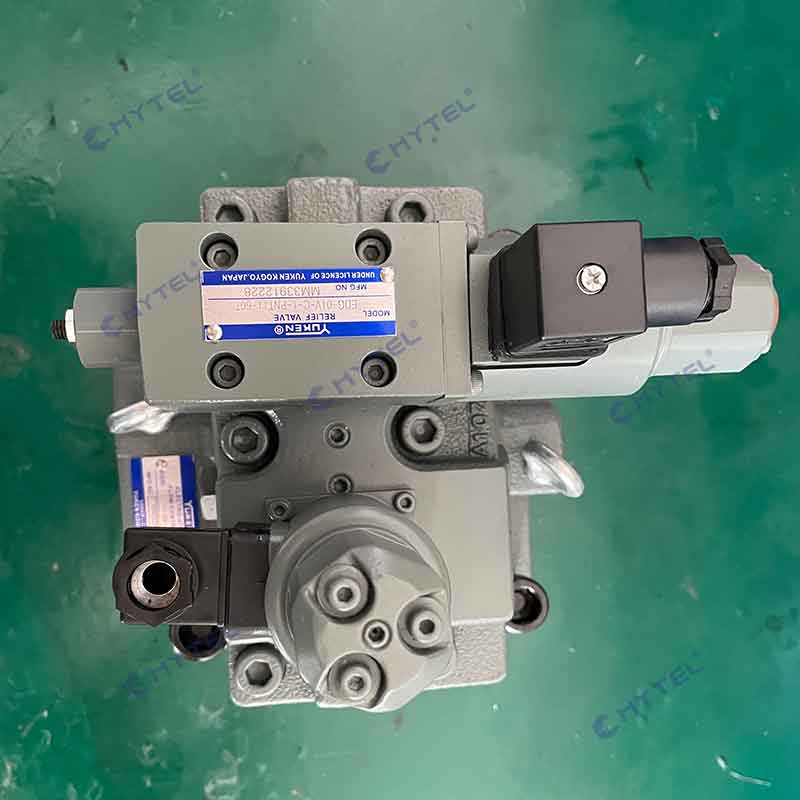

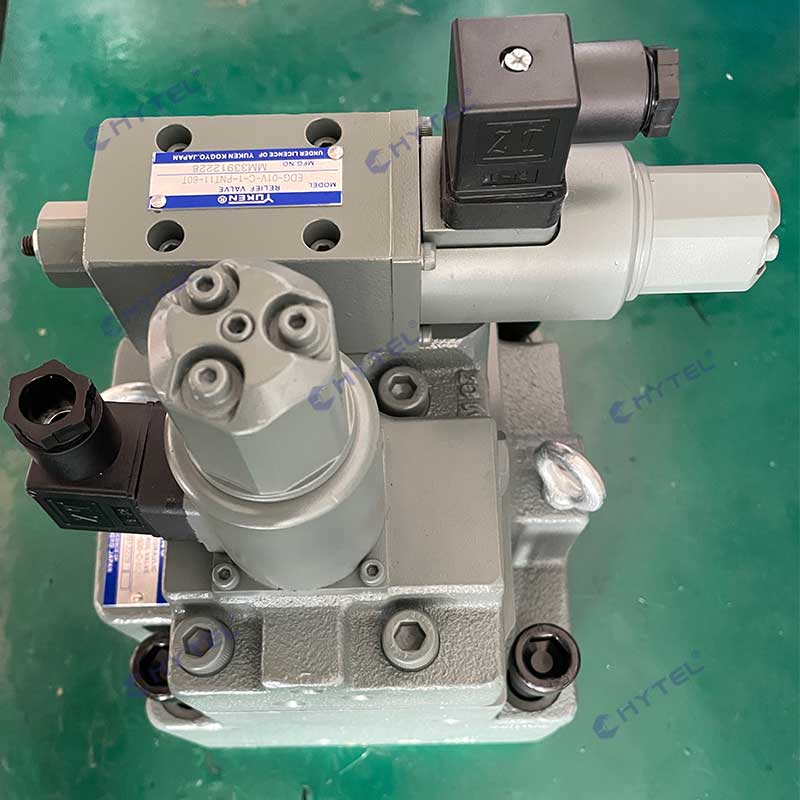

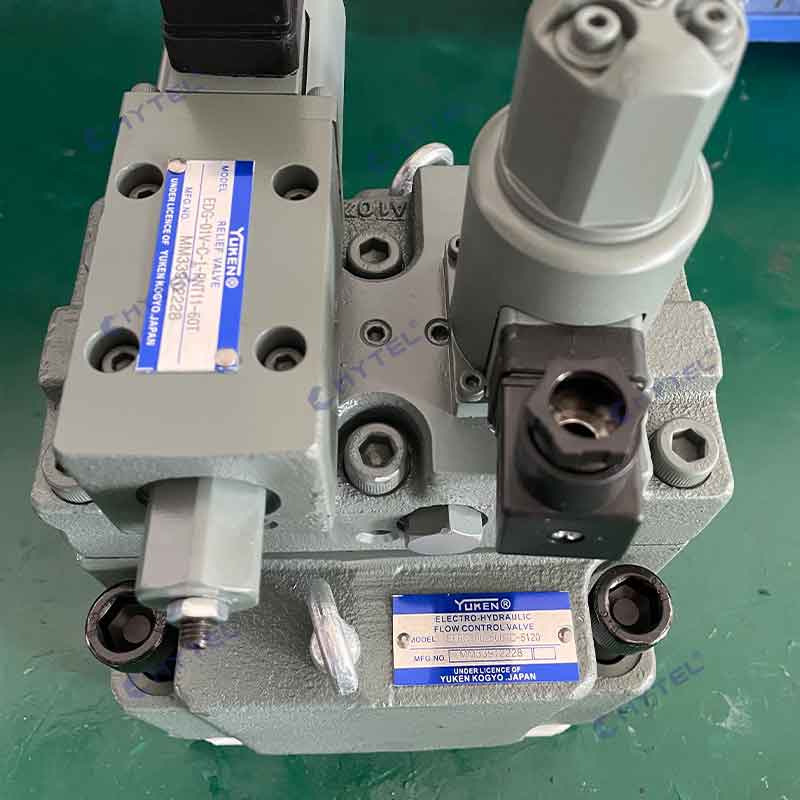

Yuken EFBG-03 EFBG-06 EFBG-10 Hydraulic Proportional Electro-Hydraulic Flow Control and Relief Valves
Specifications
|
Model No. Description |
EFBG-03 -125- -17 |
EFBG-06 -250- -17 |
EFBG-10 -500- -17 |
|
|---|---|---|---|---|
|
Max. Operating Pressure MPa (PSI) |
24.5 (3550) | 24.5 (3550) | 24.5 (3550) | |
| Max. Flow L/min (U.S.GPM) | 125 (33) | 250 (66) | 500 (132) | |
|
Metred Flow Adjustment Range L/min (U.S.GPM) |
1-125 (.26-33) |
2.5-250 (.66-66) |
5-500 (1.32-132) |
|
| Flow Controls | Rated Current | 600 mA | 580 mA | 700 mA |
| Coil Resistance | 45 | 45 | 45 | |
|
Differential Pressure MPa (PSI) |
0.6 (85) | 0.7 (100) | 0.9 (130) | |
| Hysteresis | 7% or less | 7% or less | 7% or less | |
| Repeatability | 1% or less | 1% or less | 1% or less | |
|
1 |
2 Pres. Adj. Range MPa (PSI) |
C: 1.4-13.7 (205-2000) H: 1.4-20.6 (205-3000) |
C: 1.5-13.7 (220-2000) H: 1.5-20.6 (220-3000) |
C: 1.6-13.7 (230-2000) H: 1.6-20.6 (230-3000) |
| Rated Current |
C : 750 mA H : 750 mA |
C : 690 mA H : 730 mA |
C : 690 mA H : 690 mA |
|
| Coil Resistance | 10 | 10 | 10 | |
| Hysteresis | 3% or less | 3% or less | 3% or less | |
| Repeatability | 1% or less | 1% or less | 1% or less | |
| Approx. Mass kg (lbs.) | Refer to page 714 to 716 | |||
