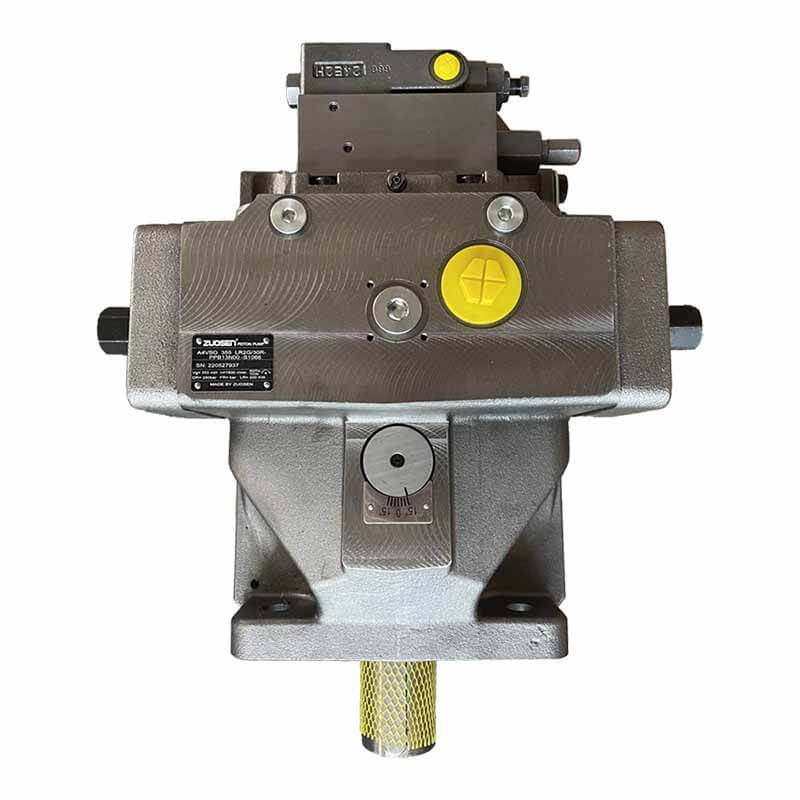

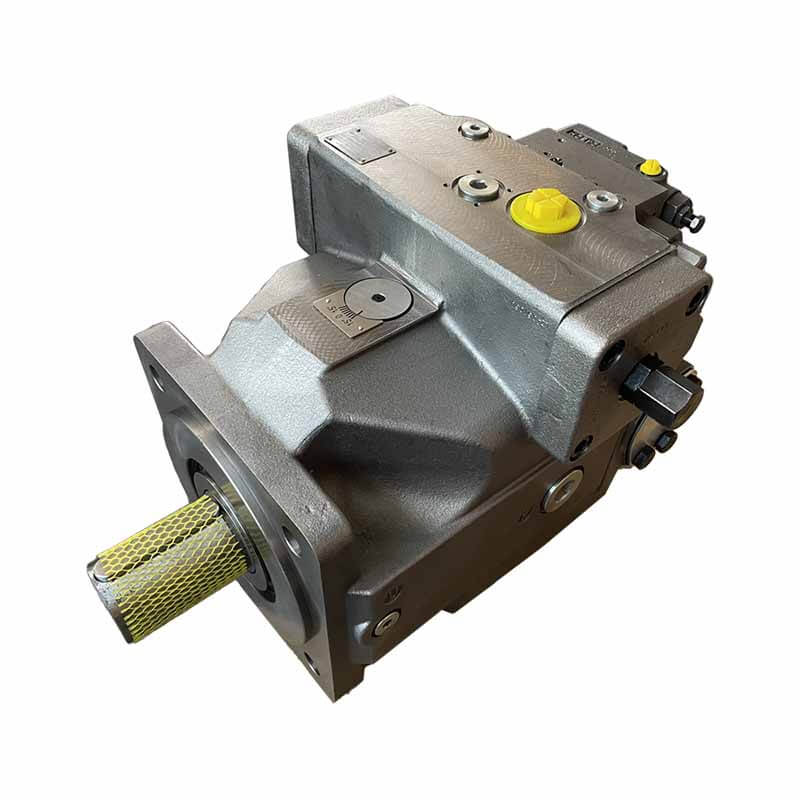

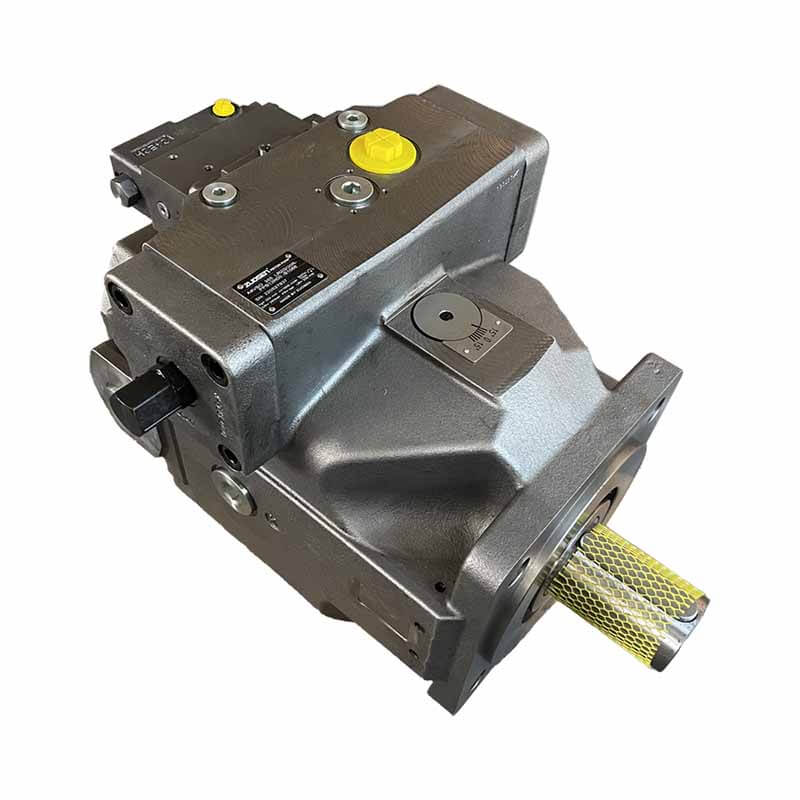

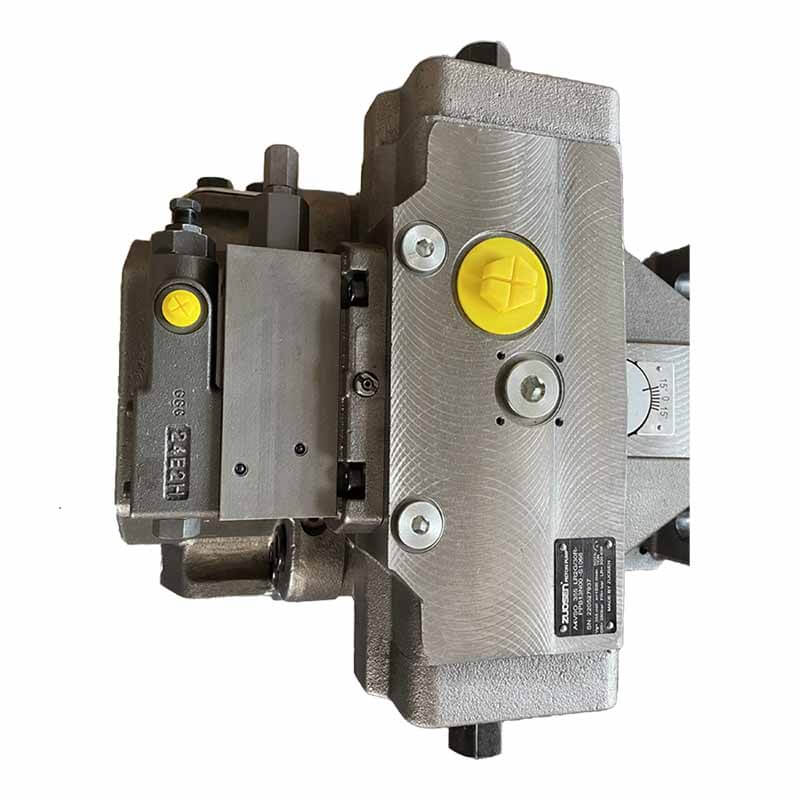

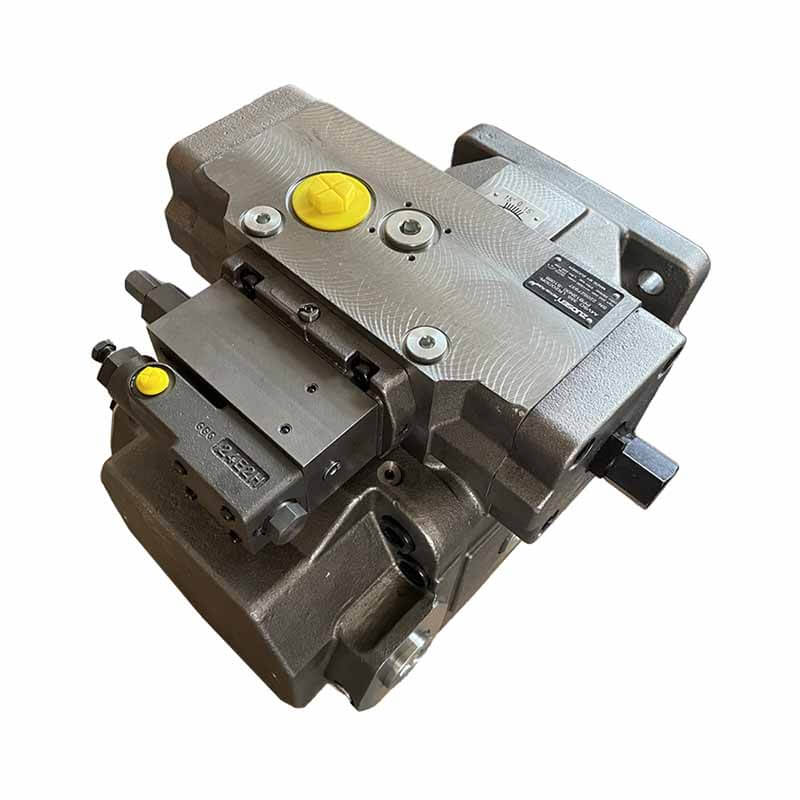

A A4VSO250 DR/30R-PPB13N00 Rexroth Hydraulic Axial Variable Piston Pump Hydraulic Pump
Specifications
| Size | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 1000 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Displacement | Vg max | cm3 | 40 | 71 | 125 | 180 | 250 | 355 | 500 | 1000 | |
| Speed max. at Vg max | no max | rpm | 2600 | 2200 | 1800 | 1800 | 1500 | 1500 | 1320 | 1000 | |
| max. at Vg ≤Vg max (speed limit) | no max zul. | rpm | 3200 | 2700 | 2200 | 2100 | 1800 | 1700 | 1600 | 1200 | |
| Flow | at no max | qvo max | L/min | 104 | 156 | 225 | 324 | 375 | 533 | 660 | 1000 |
| at nE = 1500 rpm | qVE max | L/min | 60 | 107 | 186 | 270 | 375 | 533 | 581 | - | |
| Power at no max | Δp = 350 bar | Po max | kW | 61 | 91 | 131 | 189 | 219 | 311 | 385 | 583 |
| at nE = 1500 rpm | PE max | kW | 35 | 62 | 109 | 158 | 219 | 311 | 339 | - | |
| Torque bat Vg max | Δp = 350 ba | Tmax | Nm | 223 | 395 | 696 | 1002 | 1391 | 1976 | 2783 | 5565 |
| Δp = 100 bar | T | Nm | 64 | 113 | 199 | 286 | 398 | 564 | 795 | 1590 | |
| Rotary stiffness | Shaft end P | c | kNm/rad | 80 | 146 | 260 | 328 | 527 | 800 | 1145 | 2730 |
| Shaft end Z | c | kNm/rad | 77 | 146 | 263 | 332 | 543 | 770 | 1136 | 2845 | |
| Moment of inertia rotary group | JTW | kgm2 | 0,0049 | 0,0121 | 0,03 | 0,055 | 0,0959 | 0,19 | 0,3325 | 1,20 | |
| Angular acceleration max. | α | rad/s2 | 17000 | 11000 | 8000 | 6800 | 4800 | 3600 | 2800 | 1450 | |
| Case volume | V | L | 2 | 2,5 | 5 | 4 | 10 | 8 | 14 | 27 | |
| Weight (with press. contr.) approx. | m | kg | 39 | 53 | 88 | 102 | 184 | 207 | 320 | 605 | |
FAQ
Q: Are you trading company or manufacturer?
Re: We are manufacturer.
Q: How long is the Warranty?
Re: One-year warranty.
Q: What is your payment terms?
Re: 100% in advance, long-term dealer 30% in advance, 70% before shipping.
Q: How about the delivery time?
Re: Normal Models within 2 days, unusual models and bulk order within 5-10 days.
Company Information
Zuosen Hydraulic is one of the world's leading manufacturers and suppliers of professional hydraulic piston pumps,hydraulic vane pumps,gear pumps, hydraulic valves and accessories. The Factories located at Chinese leading manufacturing centre- Foshan and Dongguan city.ZUOSEN owned advanced and precision machines and equipment, like Emag gear hobbing machine, Mitsubishi gear hobbing machine, Liebherr gear shaping machine, Horizontal machining centre DMG MORI, CNC grinding machine, NC honing machine, CNC lathe etc.Zuosen also owned the precision measuring equipment, like three coordinates measuring instrument, Gear measuring center, Rockwell hardness tester, the noise test room, Pressure &Flow & Temperature test platform,Surface Roughness & Dynamic Balance Tester leakage detecting tools etc.Now Zuosen has hundred long-term distributers and partners in worldwide.
Since our foundation, we have been committed to creating maximum long-term value to customers worldwide by providing quality-assured, easy-to-use, cost-effective and innovative products. To deliver this value to our customers, we make every effort to understand our end-users' needs and translate those needs into superior products by maximizing our research and development and manufacturing capabilities. Our team is made up of the most distinguished experts and engineers with years of experience in this industry. We have been investing a minimum of 30% of our annual revenue into new product development. All our products are manufactured with the strictest standards to meet international quality and environment standards.
